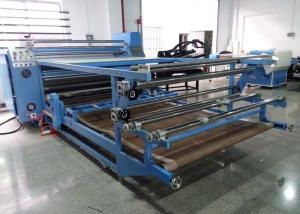

Multifunctional Rotary Heat Press Machine /
Textile Roll Calandra Machine Sublimation
◆Specification:
| Model No. |
JC-26B |
| Roller Diameter |
420mm |
| Roller Width |
1.8m |
| Voltage |
220v/380v (three-phase) |
| Power |
38KW |
| Speed |
2m/minute(420mm diameter) |
| Temp.Range |
200-230 °C |
| Main Machine Size(L*W*H) |
2.36*0.92*1.3m |
| Wooden packing Size(L*W*H) |
2.46*1.02*1.5m |
| Weight |
1800KG |
◆Product Feature
1. Chrome drum, high hardness,wear resistant,anti-sticking
2. Digital temperature and speed
3. Oil heating,temperature uniformity (±1-2°C) no deviations of color.
4. Dupoon material blankets which is not easy to deviate.
5.Short pre-heat time and heating is more even.
6.Operating efficiency is 2-3 times higher than that of last generation
7.Low noise and stable speed.
8.No cooling machine is needed and the blanket can be separated from the drum.
9.Tension of the blanket can be adjusted more easily.
10.Convenient operation with power-failure protection function.
◆Comparative advantage
◆Application:
This machine is suitable for heat press printing of both roll materials and sheet materials as well as sublimation transfer of banners, flags, T-shirts, non-woven fabrics, apparel fabrics, towels, blankets, mouse pad, belts, etc. Beyond that, it particularly works well on continuous transfer of cloth, meeting the customers' needs of mass production.
◆Work principle:
Use the computer to devise the designed pattern,print it on the specific transfer paper through digital
printer by using sublimated ink,and then become transfer printing paper.Let the transfer paper which has design cling to the fabric and feed together into the roller heat printing machine.Through high temperature and high pressure,sublimation ink on the transfer paper will transfer to fabric by pneumatolysis,printing is completed and tailor the printed fabric to become clothes.
