Feeding Top Drum Roller Heat Transfer Machine , Dye Sublimation Equipment

Name: Feeding Top Drum Roller Heat Transfer Machine Dye Sublimation Equipment
Brand: Asiaprint
Price: 1 USD

Buy cheap Feeding Top Drum Roller Heat Transfer Machine , Dye Sublimation Equipment product

Brand Name : Asiaprint

Model Number : AP-26B

Certification : CE,SGS

Place of Origin : Mainland,China

MOQ : 1 SET

Price : Negotiated

Payment Terms : T/T(30% deposit , 70% balance before shipment), L/C, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 15 working days after received your payment

Packaging Details : Packed in Rigid Standard Export Wooden Case

Keywords : Roller Heat Transfer Machine

Heating Media : Oil

Number of Heating Elements : 21pcs,27pcs

Process Path : Feeding in through Top Drum

Worktable Included : Yes, but no Glass

Air Cylinder : Y

Transfer Speed : 3"/min

Advantage 1 : Blanket/Belt Auto Alignment

Contact Now

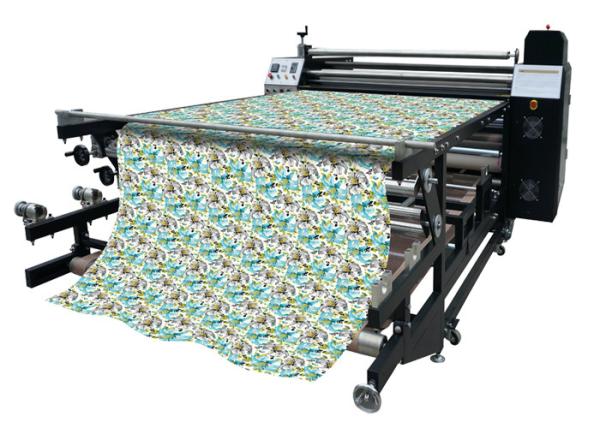

Feeding Top Drum Roller Heat Transfer Machine , Dye Sublimation Equipment

► Multi-Purpose thermal paper roll printing machine for both thermal transferring on fabrics and high temperature transferring on shirt materials.
With high quality oil heating system, AP-26B is a perfect choice for fabric and clothing printing.

► YouTube video: https: //www.youtube.com/watch?v=bCSFGrkVbMY
https://www.youtube.com/watch?v=IzqfhfHIq7U

► Specification

Item name	Large format roller heat transfer machine
Model No.	AP-26B
Printing/Roll width	1700 mm 67"	1800 mm 71"	1900 mm 75"	2600 mm 102"
Drum Diameter	420 mm 16.5" 600 mm 23.6"	420 mm 16.5" 600 mm 23.6"	420 mm 16.5" 600 mm 23.6"	600 mm 23.6"
Gross Weight	2100 KG 4630 Lbs	2150 KG 4740 Lbs	2200 KG 4850 Lbs	3200 KG 6613 Lbs
Power	46 KW	48 KW	52 KW	70 KW
Quantity of electric elements	21pcs for 420mm 27pcs for 600mm	21pcs for 420mm 27pcs for 600mm	21pcs for 420mm 27pcs for 600mm	27pcs for 600mm
Packing size in mm(LWH)	2740x1680x1900	2840x1680x1900	2940x1680x1900	367017201800

VOLTAGE:	220 volts 3-phase or 380 volts 3-phase.
TRANSFER MODE:	Roll to roll / Cut - Piece
TRANSFER SPEED:	Adjustable , 1-8 M / Min
FEEDING METHOD:	Top feeding
WORKING TABLE:	including
HEATING PRINCIPLE:	electric with thermal oil
FED IN MEDIA:	Transfer paper,blank fabric,protective paper/tissue paper
RECOMMEND TISSUE PAPER (gsm/sq.m):	35~45
RECOMMEND AIR COMPRESSOR:	required.
OTHER AVAILABLE SIZE:	900mm,1200mm,,3200mm Custom size by your special order!

► Distinguishing Features

1. It guarantees reduction of production costs, while increasing productivity, as well as multiple working systems.	2. Designed to per platen thermal sublimation print transfers on a continuous basis. Indicated for large-scale production, its *production* *speed varies from 8 m per minute* of up to 600 mm rolls
3. *Digital speed controller* that allows you to better control your production.	4. This machine allows for continuous printing, i.e., there is no need for manual feeding in of work pieces and paper during operation
5. As a safety device for the machine and the production being made on it, roller heat transfer machine is fitted with a Explosion-proof system, which,in case of any heating working and temperature over-high, prevents the equipment and the work materials from becoming burned.	6. Roll drum adopts chrome technology-Strong hardness,anti-friction, anti seize. Better than teflon coating drum.
7. Heighten Oil tank, *sealed oil drum*, which ensure 100% uniformity of temperature.	8.Blanket/Belt auto-centered-correct-alignment.
9.Automatic cool-down system turns off machine when temperature reaches 100°C	10.machine use multi-function work table

► Working Principle
